HVAC Fresh Air Handling Unit With Heat Recovery Wheel
  • نام

HVAC Fresh Air Handling Unit With Heat Recovery Wheel

مقدار تولیدی: 1
قیمت: Depend on the detail design
standard packaging: بسته بندی فیلم
روش پرداخت: T/T، L/C، وسترن یونیون
Supply Capacity: 100 در ماه
اطلاعات دقیق
توضیحات محصول
اطلاعات دقیق
محل منبع
Panyu ، Guangzhou
نام تجاری
JETEX
گواهی
ISO,CRAA
شماره مدل
سری AHS، AHE، EVH، ACH
پیکربندی جریان هوا:
جریان متقاطع یا جریان متقابل
ظرفیت خنک کننده بازیابی:
20-350 کیلووات
مواد:
ورق فولادی گالوانیزه / ورق فولادی ضد زنگ
ویدئو:
ارائه شده است
نوع محصول:
واحد هواساز با پوشش حرارتی
نصب و راه اندازی:
نصب روی سقف / کف
راندمان بازیابی گرما:
60 تا 75 درصد
نوع موتور:
درایو مستقیم یا درایو کمربند
توضیحات محصول

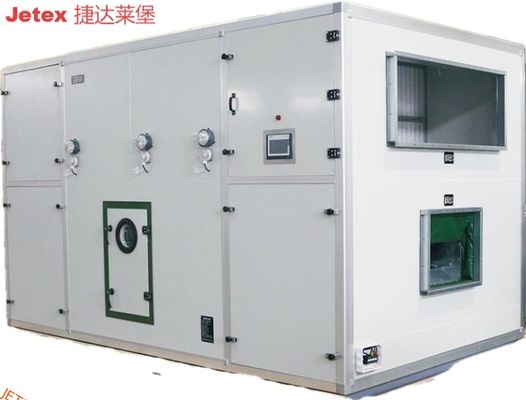

Fresh Air Handling Unit With Heat Recovery Wheel
Product Description
A Fresh Air Handling Unit With Heat Recovery Wheel (often abbreviated as FAHU with Heat Recovery Wheel) is a type of HVAC (Heating, Ventilation, and Air Conditioning) equipment designed to supply fresh outdoor air to indoor spaces while efficiently recovering sensible and latent heat (or cold) from the exhaust air being discharged from the building.
Its core feature lies in the integration of a heat recovery wheel (also called a rotary heat exchanger)—a rotating, honeycomb-structured wheel typically made of materials with high heat and moisture transfer capabilities (such as aluminum foil or desiccant-coated media). The working principle is as follows:
The wheel rotates continuously between the fresh air stream (outdoor air entering the unit) and the exhaust air stream (indoor air exiting the building).
When the wheel passes through the exhaust air side, it absorbs heat (and moisture, if using a desiccant wheel) from the warm exhaust air.
As the wheel rotates to the fresh air side, it releases the absorbed heat (and moisture) to preheat (or pre-cool and humidify/dehumidify) the incoming fresh air.
This process significantly reduces the energy required to heat, cool, or condition the fresh air to the desired indoor temperature and humidity, thereby improving the energy efficiency of the HVAC system and reducing operating costs. The unit also typically includes components such as filters (to purify fresh air), fans (to drive air flow), and sometimes coils (for additional heating or cooling) to ensure the supplied fresh air meets indoor air quality and thermal comfort requirements.


Technical Parameters
Technical Parameter Value
Warranty 1 Year
Airflow(CMH) 2000-50000cmh
Residual Pressure 100-600pa
Video Provided
Recovery Cooling Capacity 20-350kw
Construction Material Aluminum Or Stainless Steel
Airflow Configuration Crossflow Or Counterflow
Recovery Heating Capacity 20-315kw
Heat Recovery Efficiency 60%-75%
Installation Ceiling Mounted / Floor Installation


Customization

Product Customization Services for the Heat Recovery Air Handling Unit:

  • Brand Name: JETEX
  • Model Number: AHS, AHE, EVH, ACH Series
  • Place Of Origin: Guangzhou, China
  • Recovery Cooling Capacity: 20-350kW
  • Product Type: Air Handling Unit With Heat Recovery
  • Control System: Integrated With Building Management System
  • Recovery Heating Capacity: 20-315kW
  • Motor Type: Direct Drive Or Belt Drive
Support and Services

The Product Technical Support and Services for the Heat Recovery Unit include:

  • Installation guidance and support
  • Troubleshooting assistance
  • Maintenance recommendations
  • Product training and documentation
  • Warranty coverage and claims processing
FAQ
Q: What is the brand name of the Heat Recovery Unit?
A: The brand name of the Heat Recovery Unit is JETEX.
Q: What are the model numbers available for the Heat Recovery Unit?
A: The available model numbers are AHS, AHE, EVH, and ACH Series.
Q: Where is the Heat Recovery Unit manufactured?
A: The Heat Recovery Unit is manufactured in Guangzhou, China.

برچسب ها:

واحد بازیافت گرما HVAC,واحد بازیافت گرما هوای تازه,واحد بازیافت گرما HVAC,

Fresh Air Heat Recovery Unit,

Heat Recovery Unit HVAC
